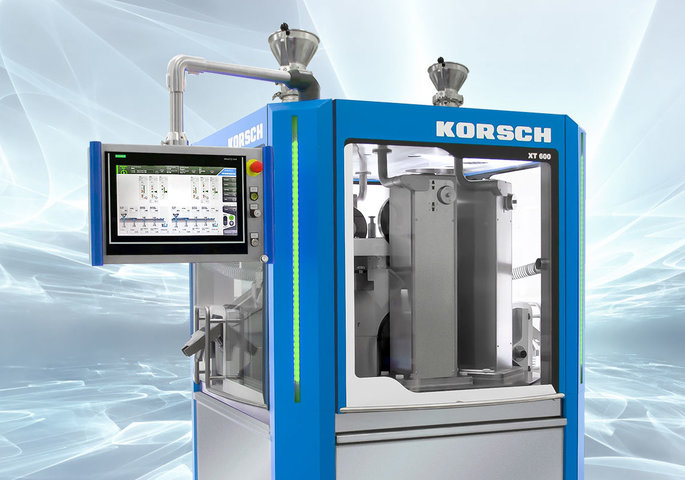

XT 600 OEB 3 - High Speed Double Rotary Press in Containment
The XT 600 OEB 3 is a double-sided rotary press for the medium containment segment for processing highly active but not highly toxic ingredients. The machine provides the necessary degree of protection at a high level of operator convenience.
Compared to a standard press, the OEB 3 safety measures include :
- Additional sealing measures at critical points: compression chamber casing windows with additional locking mechanisms and all connectors, like the discharge chute or the connection to the deduster, in enclosed design with tri-clamps. Where an operator needs to intervene in the compression zone during production, extra glove ports can be installed if requested by the customer.
- Supply air from the production space sucked into the machine in a controlled manner via a HEPA filter.
- Negative pressure in the compression zone generated via the dust extraction ventilator and the adjustable valve in the supply air pathway.
High Speed
Double Rotary
Press
> 1 MIO SINGLE-LAYER TABS/H.
BI-LAYER CAPABILITY
INTUITIVE CONTROLS WITH SMART-TOUCH HMI
TURRET REMOVAL
Food & Confectionary Applications
The machine complies with the highest standard in GMP- and all valid FDA-regulations. Each machine can be configured to meet specific customer needs like:
- Special shape tablets
- Ring Formats tablets(center pin)
- Chewing Gum Tablets
Superior Output
The XT 600 is a workhorse for high volume, 24/7 operation. It offers a 100 kN pre and main compression capability, 100 RPM press speed capability, and a maximum output of 1,000,000 single-layer tablets per hour. The XT 600 has the flexibility to produce both single and bi-layer tablets. A bi-layer conversion kit can be adapted to the machine at any time.
Intuitive Operating Environment
The XT 600 features a modern ”SIMOTION” control system with Smart-Touch HMI that provides an intuitive operating environment and permits move, zoom, and scroll gestures. The HMI environment offers a comprehensive onboard help capability, which includes a vast array of multi-media help files to present procedures and to support the operation and maintenance.
Simple and Robust Design
The XT 600 offers a GMP compression zone that is both accessible and ergonomic. Four large windows maximize visibility and access for cleaning and changeover. Large access panels in the base of the machine simplify access for maintenance. The new Multi-Function Channels (corner columns) provide full access to wiring and dust extraction hoses, which are isolated from the compression zone.
Robust Compression Column Design
The XT 600 offers both 60 kN and 100 kN compression columns which are suitable for all compression requirements and retrofitable at any time. The compression columns can be easily re-positioned to permit turret exchange or machine cleaning. There is full accessibility for maintenance, since the back panel of the column can be opened. The compression dwell bar extends consolidation time and increases tablet hardness at high speeds.
Minimal Noise and Vibration
The unique and patented design of the carrier plate, with dampers, fully isolates vibration from the head piece and machine base. The result is:
- Very low noise emission < 80 dB(A)
- No vibration transmission to the floor of the compression room
- No segregation of powder in the feeding system wich can occur with machine vibration
Innovative Feeder Concept
An innovative feeder design permits precise and simplified adjustment of the feeder gap. Available with a 2-chamber or 3-chamber variable speed feeder, or a gravity feeder, the XT 600 offers an extended feeder length to maximize feeder dwell time. The closed feeder design and unique sandwich seal insure a clean die table and superior production yields. A flexible coupling at the feeder inlet eliminates vibration and product segregation.
Exchangeable Turret
The exchangeable turret is designed for fast removal and installation and permits maximum output to be obtained for all tablet shapes and sizes. The new turret design permits the manual removal of the entire turret, including upper and lower cam track as well as press tools.
XT 600 OEB 3 Downloads
Download our brochure or have a look at the technical data:
VERSIONS: XT 600
All machines offered in a high-containment execution are also offered in a standard version. All the expertise acquired for containment technology can also be applied to our standard machines, in terms of dust tightness, contamination control, service access, and cleanability.
